DAWSON/OEM
DSPG-O
Availability: | |
---|---|
Quantity: | |
Technical parameters
WLL | Frame size | D max | E | D min | F max | H max | H min | G | weight | Trolley roller size | Caster Diam |
Max height to lifting eye | Height increment | Min height to lifting eye | Max height to top of beam | Max height to top of roller | Min height to top roller | Width | |||||
kg | mm | mm | mm | mm | mm | mm | kg | mm | mm | ||
500 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 71 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 77 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 96 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 99 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 105 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 111 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 114 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 118 | 80 | 200 | |
1000 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 71 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 77 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 96 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 99 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 105 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 111 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 114 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 118 | 80 | 200 | |
2000 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 78 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 85 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 107 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 110 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 117 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 124 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 132 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 134 | 80 | 200 | |
3000 | S | 2410 | 5×150 | 1605 | 2730 | 2812 | 2062 | 1212 | 99 | 80 | 200 |
M | 2906 | 5×150 | 2101 | 3226 | 3308 | 2558 | 1429 | 102 | 80 | 200 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 114 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 118 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 126 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 135 | 80 | 200 | |
TC1 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 143 | 80 | 200 | |
5000 | S | 3181 | 5×200 | 2181 | 3592 | 3717 | 2717 | 1736 | 119 | 125 | 200 |
M | 4049 | 6×200 | 2849 | 4487 | 4612 | 3412 | 2021 | 137 | 125 | 200 | |
I | 4500 | 6×200 | 3300 | 4938 | 5062 | 3862 | 2234 | 145 | 125 | 200 | |
T | 5000 | 6×200 | 3800 | 5438 | 5562 | 4362 | 2557 | 154 | 125 | 200 |
3000mm 3920mm 4570mm 5500mm 6000mm 8400mm 9000mm
With standard beam lengths
Convenient transportation and assembly without affecting the strength, safe use (lifting capacity up to 5000 kg)The size and configuration can be customized according to the use environment
Each portable gantry’s system comprises
2×A-Frames(or custom alternatives)
Trolley fully encapsulated for safety
Beam lengths up to 9000mm(WLL dependent)
(NB Dim C=clear operating span=A-920mm)
Note: Adjustment of girder height
The height of each gantry crane is easy to adjust, and it can be easily and safely raised to the required position by inserting and pulling 2 bolts in the vertical position.
Adjustment spacing:200 or 150mm
Ratchet mechanism can be installed on the side, which can lift the weight with Iess force.
Specification of length of beam and dead weight
Standard beam length A(mm) (Clear Operating Span C=A-920mm) | ||||||||
A | 2500 | 3000 | 3920 | 4570 | 5500 | 6000 | 8400 | 9000 |
C | 1580 | 2080 | 3000 | 3650 | 4580 | 5080 | 7480 | 8080 |
500 | 12 | 14 | 18 | 21 | 44 | 48 | 101 | 108 |
1000 | 20 | 24 | 32 | 37 | 44 | 48 | 101 | 108 |
2000 | 30 | 36 | 47 | 55 | 66 | 72 | 101 | * |
3000 | 30 | 36 | 47 | 55 | 66 | 72 | * | * |
5000 | 30 | 36 | 47 | 55 | 66 | * | * | * |
*Different lifting capacities have corresponding different size series.
*Non-standard lifting capacity, span and height can be customized.
*AII products are equipped with a standard trolley(other accessories are optional).
*The total weight is the weight of the main beam plus the weight of the legs.
*500 girder height 250 mm, trolley height 570 mm, distance from trolley top to girder 125mm DSPG.
*The standard girder is 152mm high, the trolley is 385mm high, and the distance from the top of the trolley to the girder is 82mm.
*Weight includes stable support.
*Please note that sizes may vary slightly.
* The S-shaped one has no leg support.
DSPG Type Portable Portal Gantry
DSPG type include DSPG-O, DSPG-C, DSPG-H 3types.Each model is equipped with different main beams to adapt to different working conditions. Our top quality and highly durable PORTAGANTRY is Features & Performance lightweight and extremely strong. This portable system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications.
Key features
Aluminum alloy gantry has a variety of profiles track and assembly forms, carrying capacity of up to 5000kg, precision machining aluminum alloy profiles and structural parts simple installation, modular, and keep running more smoothly. Aluminum alloy gantry is light in weight but has higher bending strength and better wear resistance. Due to the positive electroplating treatment on the surface and its anti-corrosion properties, this structure is used in clean, explosion-proof workshop and automobile production line, lithium electricity, food and electronics and other industrial occasions.
Configurations
●The PORTA GANTRY is available in a range of configurations and can be customized in line with specific requirements(subject to WLL rating).
●The PORTA GANTRY has the ability to be moved under load.(Subject to detailed instruction and supervision by a competent person).
250kg-5000kg
1-4 person assembly
92-294kg flat pack
EN795 certified
ATEX certified
Accreditations,certifications & standards | 250 | 500 | 1000 | 2000 | 3000 | 5000 |
EN795:2012 | √ | √ | √ | √ | √ | √ |
PD CEN/TS16415:2013 | √ | √ | √ | √ | √ | √ |
ANSI Z359.18-17 | √ | √ | √ | √ | √ | √ |
AS/NZS 5532:2013 | √ | √ | √ | √ | √ | √ |
ATEX Certified [zone 2] | √ | √ | √ | √ | √ | √ |
ATEX Certified [zone 1] | √ | √ | √ | √ | √ | √ |
IRATA | √ | √ | √ | √ | √ | √ |
Capacity | ||||||
Max goods lifting (kg) | 250 | 500 | 1000 | 2000 | 3000 | 5000 |
Max personnel lifting (kg) | 250 | 250 | 400 | 750 | 1000 | 2000 |
Fall arrest (persons) | 3 | 3 | 3 | 5 | 5 | 5 |
Dimensions | ||||||
Min height of lift (mm) | 1605 | 1605 | 1605 | 1605 | 1660 | 2181 |
Max height of lift (mm) | 5829 | 5829 | 5829 | 5829 | 5527 | 5000 |
Min available span (mm) | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
Max available span (mm) | 9000 | 9000 | 9000 | 8400 | 8400 | 5500 |
Trolley options | ||||||
Standard | √ | √ | √ | √ | √ | √ |
Gated | √ | √ | √ | √ | √ | √ |
Close coupled | √ | √ | √ | √ | × | × |
Gear driven | √ | √ | √ | √ | × | × |
Integrated hoist | √ | √ | √ | √ | × | × |
Standard features | ||||||
Ratchet height adjustment | √ | √ | √ | √ | √ | × |
Gear height adjustment | × | × | × | × | × | √ |
Mechanical aid assembly | × | × | × | × | × | √ |
Optional extras | ||||||
Lobed cheek plates | √ | √ | √ | √ | √ | √ |
Winch upgrade | √ | √ | √ | √ | √ | √ |
Wind up jack legs | √ | √ | √ | √ | √ | √ |
Trolley rope control system | √ | √ | √ | √ | √ | √ |
Festoon system | √ | √ | √ | √ | √ | √ |
Jointed beam | √ | √ | √ | × | × | × |
Finishes | ||||||
Anodized | √ | √ | √ | √ | √ | √ |
316SS fixings | selectable | selectable | selectable | selectable | selectable | selectable |
Marine spec | selectable | selectable | selectable | selectable | selectable | × |
Welcome to buy the newest and competitive price DAWSON DSPG-O Type 500kg-3000kg Track Portal Gantry, Aluminum Alloy Portable Gantry, Gantry Cranes from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

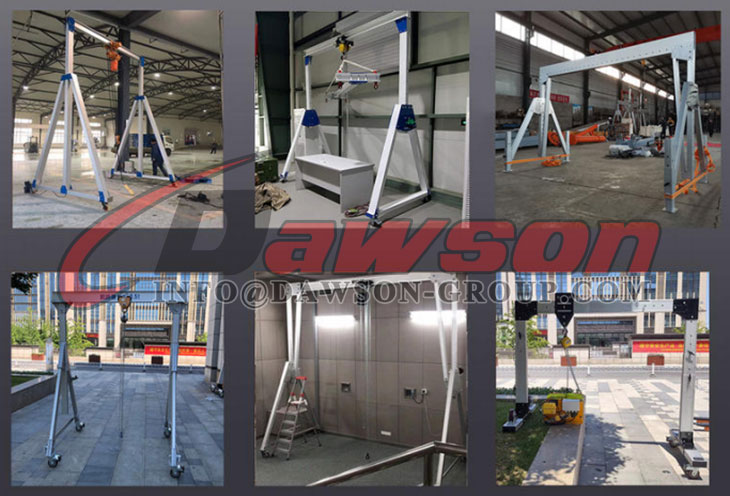

Products Show:
Other Related Products:
DAWSON Gantry Crane Catalogue Download:
Factory and Package:
Technical parameters
WLL | Frame size | D max | E | D min | F max | H max | H min | G | weight | Trolley roller size | Caster Diam |
Max height to lifting eye | Height increment | Min height to lifting eye | Max height to top of beam | Max height to top of roller | Min height to top roller | Width | |||||
kg | mm | mm | mm | mm | mm | mm | kg | mm | mm | ||
500 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 71 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 77 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 96 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 99 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 105 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 111 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 114 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 118 | 80 | 200 | |
1000 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 71 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 77 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 96 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 99 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 105 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 111 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 114 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 118 | 80 | 200 | |
2000 | S | 2355 | 5×150 | 1605 | 2675 | 2757 | 2007 | 1212 | 78 | 80 | 160 |
M | 2851 | 5×150 | 2101 | 3171 | 3253 | 2503 | 1429 | 85 | 80 | 160 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 107 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 110 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 117 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 124 | 80 | 200 | |
TC2 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 132 | 80 | 200 | |
TC1 | 5829 | 9×200 | 4029 | 6149 | 6231 | 4431 | 2733 | 134 | 80 | 200 | |
3000 | S | 2410 | 5×150 | 1605 | 2730 | 2812 | 2062 | 1212 | 99 | 80 | 200 |
M | 2906 | 5×150 | 2101 | 3226 | 3308 | 2558 | 1429 | 102 | 80 | 200 | |
I | 3188 | 5×200 | 2188 | 3499 | 3581 | 2581 | 1726 | 114 | 80 | 200 | |
T | 4079 | 6×200 | 2879 | 4399 | 4481 | 3281 | 2011 | 118 | 80 | 200 | |
TC4 | 4527 | 6×200 | 3327 | 4847 | 4930 | 3730 | 2234 | 126 | 80 | 200 | |
TC3 | 5027 | 6×200 | 3827 | 5347 | 5430 | 4230 | 2557 | 135 | 80 | 200 | |
TC1 | 5527 | 8×200 | 3927 | 5848 | 5930 | 4330 | 2733 | 143 | 80 | 200 | |
5000 | S | 3181 | 5×200 | 2181 | 3592 | 3717 | 2717 | 1736 | 119 | 125 | 200 |
M | 4049 | 6×200 | 2849 | 4487 | 4612 | 3412 | 2021 | 137 | 125 | 200 | |
I | 4500 | 6×200 | 3300 | 4938 | 5062 | 3862 | 2234 | 145 | 125 | 200 | |
T | 5000 | 6×200 | 3800 | 5438 | 5562 | 4362 | 2557 | 154 | 125 | 200 |
3000mm 3920mm 4570mm 5500mm 6000mm 8400mm 9000mm
With standard beam lengths
Convenient transportation and assembly without affecting the strength, safe use (lifting capacity up to 5000 kg)The size and configuration can be customized according to the use environment
Each portable gantry’s system comprises
2×A-Frames(or custom alternatives)
Trolley fully encapsulated for safety
Beam lengths up to 9000mm(WLL dependent)
(NB Dim C=clear operating span=A-920mm)
Note: Adjustment of girder height
The height of each gantry crane is easy to adjust, and it can be easily and safely raised to the required position by inserting and pulling 2 bolts in the vertical position.
Adjustment spacing:200 or 150mm
Ratchet mechanism can be installed on the side, which can lift the weight with Iess force.
Specification of length of beam and dead weight
Standard beam length A(mm) (Clear Operating Span C=A-920mm) | ||||||||
A | 2500 | 3000 | 3920 | 4570 | 5500 | 6000 | 8400 | 9000 |
C | 1580 | 2080 | 3000 | 3650 | 4580 | 5080 | 7480 | 8080 |
500 | 12 | 14 | 18 | 21 | 44 | 48 | 101 | 108 |
1000 | 20 | 24 | 32 | 37 | 44 | 48 | 101 | 108 |
2000 | 30 | 36 | 47 | 55 | 66 | 72 | 101 | * |
3000 | 30 | 36 | 47 | 55 | 66 | 72 | * | * |
5000 | 30 | 36 | 47 | 55 | 66 | * | * | * |
*Different lifting capacities have corresponding different size series.
*Non-standard lifting capacity, span and height can be customized.
*AII products are equipped with a standard trolley(other accessories are optional).
*The total weight is the weight of the main beam plus the weight of the legs.
*500 girder height 250 mm, trolley height 570 mm, distance from trolley top to girder 125mm DSPG.
*The standard girder is 152mm high, the trolley is 385mm high, and the distance from the top of the trolley to the girder is 82mm.
*Weight includes stable support.
*Please note that sizes may vary slightly.
* The S-shaped one has no leg support.
DSPG Type Portable Portal Gantry
DSPG type include DSPG-O, DSPG-C, DSPG-H 3types.Each model is equipped with different main beams to adapt to different working conditions. Our top quality and highly durable PORTAGANTRY is Features & Performance lightweight and extremely strong. This portable system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications.
Key features
Aluminum alloy gantry has a variety of profiles track and assembly forms, carrying capacity of up to 5000kg, precision machining aluminum alloy profiles and structural parts simple installation, modular, and keep running more smoothly. Aluminum alloy gantry is light in weight but has higher bending strength and better wear resistance. Due to the positive electroplating treatment on the surface and its anti-corrosion properties, this structure is used in clean, explosion-proof workshop and automobile production line, lithium electricity, food and electronics and other industrial occasions.
Configurations
●The PORTA GANTRY is available in a range of configurations and can be customized in line with specific requirements(subject to WLL rating).
●The PORTA GANTRY has the ability to be moved under load.(Subject to detailed instruction and supervision by a competent person).
250kg-5000kg
1-4 person assembly
92-294kg flat pack
EN795 certified
ATEX certified
Accreditations,certifications & standards | 250 | 500 | 1000 | 2000 | 3000 | 5000 |
EN795:2012 | √ | √ | √ | √ | √ | √ |
PD CEN/TS16415:2013 | √ | √ | √ | √ | √ | √ |
ANSI Z359.18-17 | √ | √ | √ | √ | √ | √ |
AS/NZS 5532:2013 | √ | √ | √ | √ | √ | √ |
ATEX Certified [zone 2] | √ | √ | √ | √ | √ | √ |
ATEX Certified [zone 1] | √ | √ | √ | √ | √ | √ |
IRATA | √ | √ | √ | √ | √ | √ |
Capacity | ||||||
Max goods lifting (kg) | 250 | 500 | 1000 | 2000 | 3000 | 5000 |
Max personnel lifting (kg) | 250 | 250 | 400 | 750 | 1000 | 2000 |
Fall arrest (persons) | 3 | 3 | 3 | 5 | 5 | 5 |
Dimensions | ||||||
Min height of lift (mm) | 1605 | 1605 | 1605 | 1605 | 1660 | 2181 |
Max height of lift (mm) | 5829 | 5829 | 5829 | 5829 | 5527 | 5000 |
Min available span (mm) | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
Max available span (mm) | 9000 | 9000 | 9000 | 8400 | 8400 | 5500 |
Trolley options | ||||||
Standard | √ | √ | √ | √ | √ | √ |
Gated | √ | √ | √ | √ | √ | √ |
Close coupled | √ | √ | √ | √ | × | × |
Gear driven | √ | √ | √ | √ | × | × |
Integrated hoist | √ | √ | √ | √ | × | × |
Standard features | ||||||
Ratchet height adjustment | √ | √ | √ | √ | √ | × |
Gear height adjustment | × | × | × | × | × | √ |
Mechanical aid assembly | × | × | × | × | × | √ |
Optional extras | ||||||
Lobed cheek plates | √ | √ | √ | √ | √ | √ |
Winch upgrade | √ | √ | √ | √ | √ | √ |
Wind up jack legs | √ | √ | √ | √ | √ | √ |
Trolley rope control system | √ | √ | √ | √ | √ | √ |
Festoon system | √ | √ | √ | √ | √ | √ |
Jointed beam | √ | √ | √ | × | × | × |
Finishes | ||||||
Anodized | √ | √ | √ | √ | √ | √ |
316SS fixings | selectable | selectable | selectable | selectable | selectable | selectable |
Marine spec | selectable | selectable | selectable | selectable | selectable | × |
Welcome to buy the newest and competitive price DAWSON DSPG-O Type 500kg-3000kg Track Portal Gantry, Aluminum Alloy Portable Gantry, Gantry Cranes from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Other Related Products:
DAWSON Gantry Crane Catalogue Download:
Factory and Package:
content is empty!
