DS-PA-200E-DS-PA-1000E AC Mini Electric Wire Rope Hoist for Lifting Equipment

  • DAWSON/OEM
  • DS-PA-200E-DS-PA-1000E AC Mini Electric Wire Rope Hoist for Lifting Equipment
  • 100pcs
Quantity:
DS-PA-200E-DS-PA-1000E AC Mini Electric Wire Rope Hoist for Lifting Equipment
Mini Electric Wire Rope Hoist, AC Electric Hoist
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

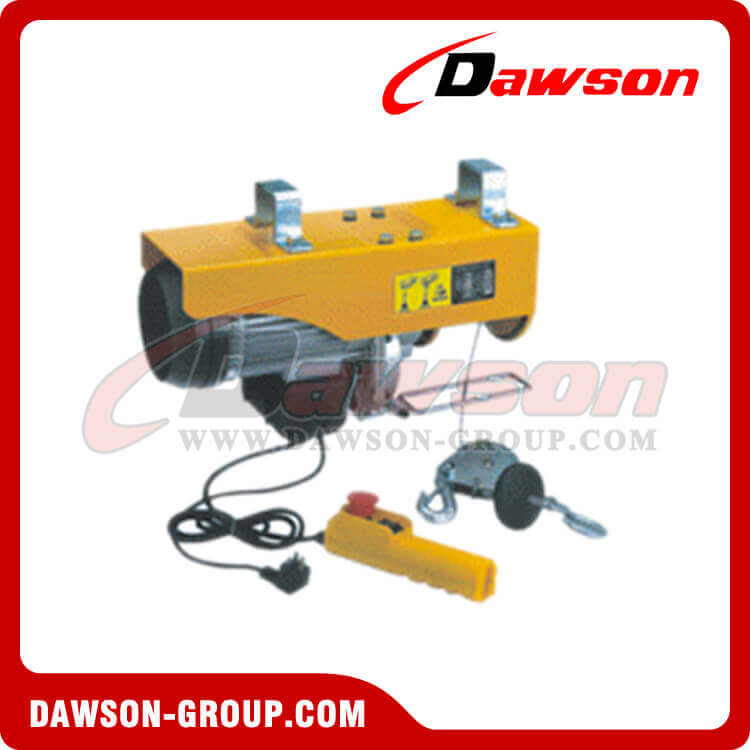

DS-PA200E-DS-PA1000E Mini Electric Hoist Series - Dawson Group Ltd. - China Supplier    MINI ELECTRIC WIRE ROPE HOIST DS-EWH Type - Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter


Feature:
Adopt urgent stop switch and reinforced breaking switch with position limit, up and down limit device, protection class up to IP54. with thermal protection device.
Latest European Standard Attestation with up and down position limit safety device certified for CE, GS, EMC, and RoHS
ModelUsageRated Volt
(V)
Input Power
(W)
Rated capacity(kg)Lifting Speed
(m/min)
Lifting Height
(m)
Qty/CTN
(pcs)
Packing Size
(mm)
G.W./N.W.
(kg)
DS-HGS-B1-200E
PA-200E
Single-hookAC
200/230/240
50/60Hz
48010010122470×370×16024/22
Double-hook20056
DS-HGS-B1-250E
PA-250E
Single-hook5401251012
Double-hook25056
DS-HGS-B1-300E
PA-300E
Single-hook6001501012
Double-hook30056
DS-HGS-B1-400E
PA-400E
Single-hook9502001012520×420×17035/33
Double-hook40056
DS-HGS-B1-500E
PA-500E
Single-hook10202501012
Double-hook50056
DS-HGS-B1-600E
PA-600E
Single-hook1200300812
Double-hook60046
DS-HGS-B1-700E
PA-700E
Single-hook125035081239/37
Double-hook70046
DS-HGS-B1-800E
PA-800E
Single-hook1300400812
Double-hook80046
DS-HGS-B1-1000E
PA-1000E
Single-hook16005008121560×250×35032/31
Double-hook90046


A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.
A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.

Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.
Selection Criteria

The size of the hoist is determined by the load spectrum, average operating time, safe working load and rope revving.

1. What are the operating conditions ?
2. What is the specified safe working load ?
3. To what height must the load be lifted ?
4. What is the required lifting speed ?
5. Do the loads need to be lifted and lowered with great accuracy ?
6. Is horizontal load travel necessary ?
7. How the hoist to be controlled ?
Duty FactorMean Effective LoadsAverage operating time per day in hours
Light Duty Light DutyK≤0.125
Hoist units which are usually subject to very small loads and in exceptional cases only to maximum loads
≤22-14-88-16
Medium Duty Medium Duty0.125<k≤0.25
Hoist units which are usually subject to small loads but rather often to maximum loads
≤11-22-44-8
Heavy DutyHeavy Duty 0.25<k≤0.5
Hoist units which are usually medium loads but frequently to maximum loads
≤0.50.5-11-22-4
Very Heavy Duty Very Heavy Duty0.5<k≤1
Hoist units which are usually subject to maximum or almost maximum loads
≤0.250.25-0.50.5-11-2
Working GroupISOM3M4M5M6
FEM1Bm1Am2m3m


The average operating time per working day is estimated or calculated as follows:
                                      2 × average hook path(m) × number of cycles/hour × number of working time/day
Operating time/day=  ------------------------------------------------------------------------------------------------------------
                                                                                  60×lifting speed(m/min)

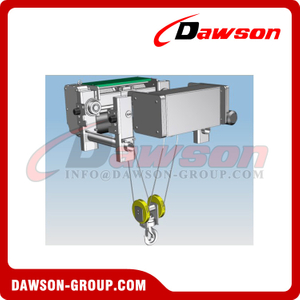

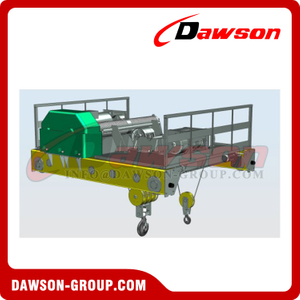

Rope Reeling Mini Electric Wire Rope Hoist DS-EWH Type - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

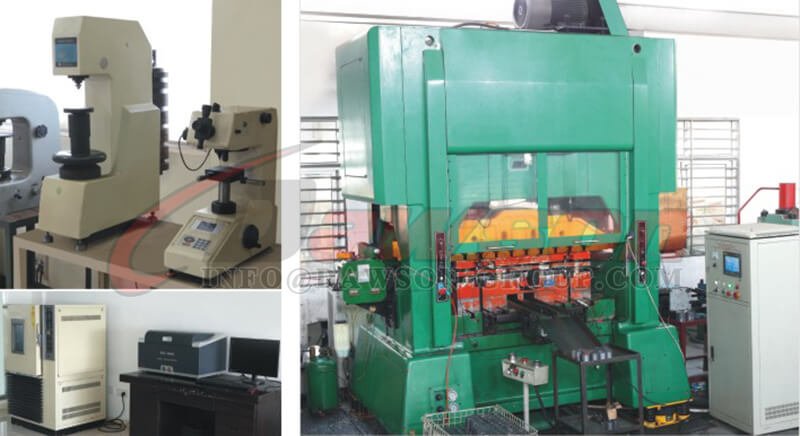

Production and Equipment:

Production and Equipment - Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

Production and Equipment - Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

Application of related products:

application of Mini Electric Wire Rope Hoist DS-EWH Type - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

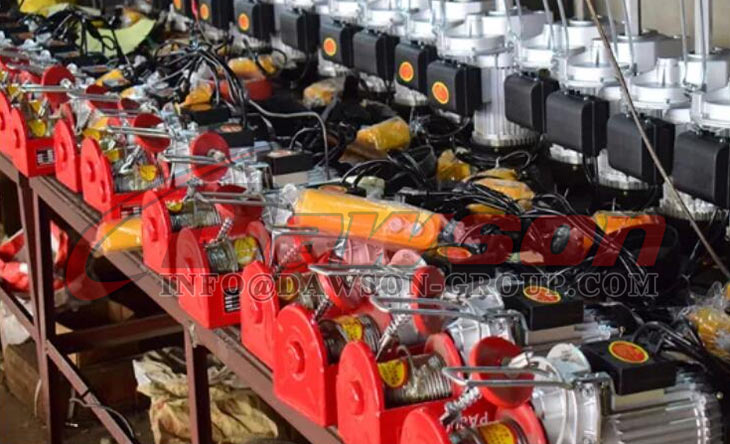

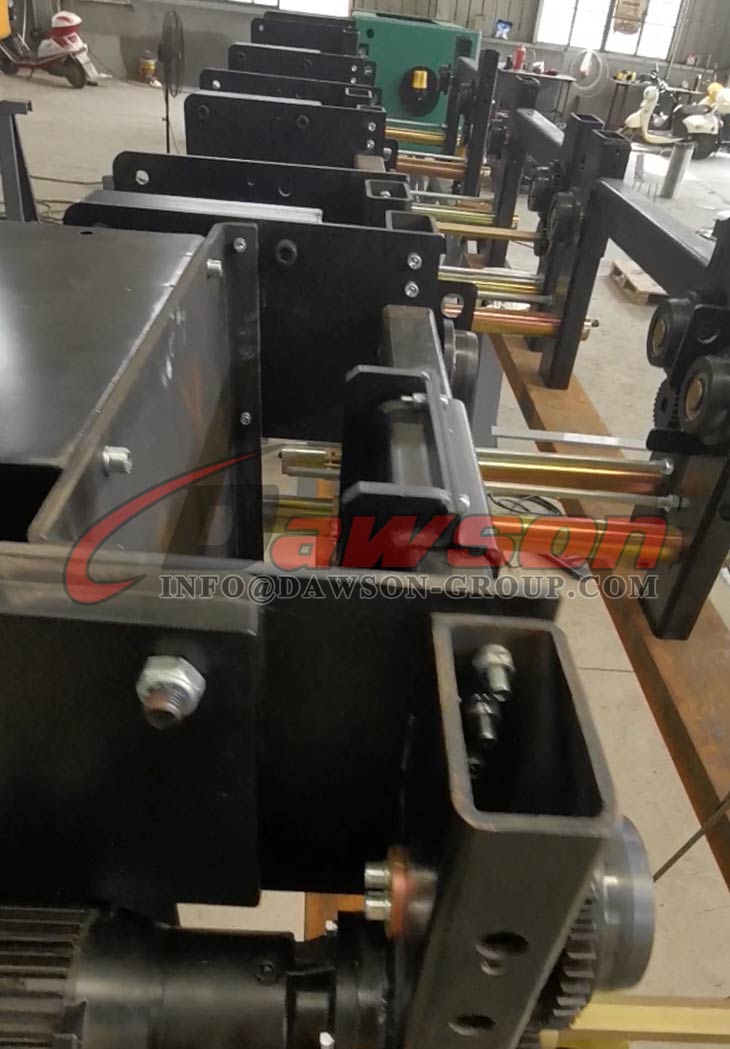

Factory & Package Show:
China Packing of Mini Electric Wire Rope Hoist DS-EWH Type - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
