Instructions:
Optimized designing, DIN/FEM standard, smaller wheel load, space saving.
Single welding box girder, DIN/FEM standard deflection.
Shot-blasting Sa2.5 for complete girder after welding, stress release.
Epoxy zinc rich high quality paiting,2 ×2with 140 µm
10.9 class High tension bolts mouting between girder and legs, life time safety connection
Compacted gear motor driving, steeples control, harden gear, safety disck brake.
High protection class IP55, F class,40% ED
First class lifting units, maintenance free
Gear motor locker rope to protect drop
Flexible solution for all lifting needs
Excellent driving properties ,steeples control, smoothly moving

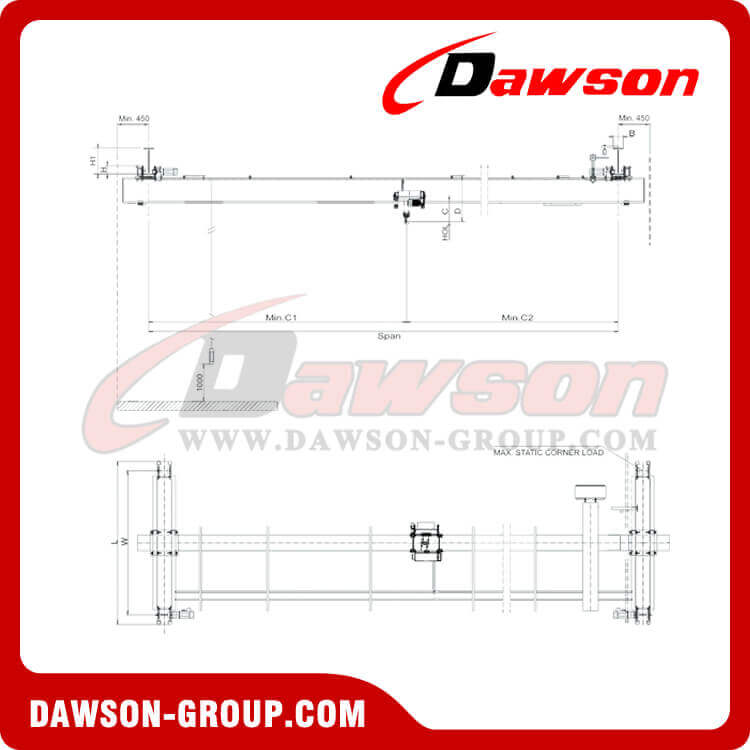

| SWL | Span | Lifting height | FEM | Lifting speed | Main size | Press Max | Crane weight | Crane power |
| W | L | C | C1 | C2 | B | H | H1 | D |
| t | m | m | m/min | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg | kW |
| 2 | 6 | 9 | A5
2M | 5/0.8 | 1700 | 2030 | 385 | 50 | 20 | 90-300 | 132 | 232 | 1105 | 14.1 | 1020 | 4.30 |
| 9 | 1700 | 2030 | 132 | 232 | 1105 | 15.1 | 1330 | 4.30 |
| 12 | 1700 | 2030 | 132 | 232 | 1105 | 16.5 | 1770 | 4.30 |
| 15 | 2200 | 2550 | 163 | 263 | 1335 | 18.9 | 2760 | 4.30 |
| 18 | 2200 | 2550 | 163 | 263 | 1367 | 20.7 | 3450 | 4.30 |
| 20 | 2500 | 3100 | 140 | 240 | 1674 | 21.4 | 3690 | 4.30 |
| 3.2 | 6 | 9 | A5
2M | 5/0.8 | 1700 | 2030 | 385 | 50 | 20 | 90-300 | 163 | 263 | 1040 | 20.7 | 1290 | 4.30 |
| 9 | 1700 | 2030 | 163 | 263 | 1040 | 21.9 | 1630 | 4.30 |
| 12 | 1700 | 2030 | 163 | 263 | 1119 | 23.4 | 2140 | 4.30 |
| 15 | 2200 | 2550 | 163 | 263 | 1372 | 25.8 | 3110 | 4.30 |
| 18 | 2200 | 2550 | 186 | 286 | 1394 | 27.1 | 3610 | 4.30 |
| 20 | 2500 | 3100 | 186 | 263 | 1623 | 28.4 | 4130 | 4.30 |
| 5 | 6 | 9 | A5
2M | 5/0.8 | 2200 | 2550 | 495 | 180 | 170 | 90-300 | 186 | 286 | 1062 | 30.0 | 1510 | 7.75 |
| 9 | 2200 | 2550 | 186 | 286 | 1253 | 31.7 | 2000 | 7.75 |
| 12 | 2200 | 2550 | 186 | 286 | 1257 | 33.4 | 2530 | 7.75 |
| 15 | 2200 | 2550 | 186 | 286 | 1506 | 35.7 | 3360 | 7.75 |
| 18 | 2200 | 2550 | 186 | 286 | 1735 | 38.9 | 4640 | 7.75 |
| 20 | 2500 | 3430 | 186 | 286 | 1735 | 40.1 | 5100 | 7.75 |
| 6.3 | 6 | 9 | A5
2M | 5/0.8 | 2200 | 2710 | | | | | 252 | 352 | 1301 | 38.6 | 2320 | 12.00 |
| 9 | 2200 | 2710 | 252 | 352 | 1301 | 40.6 | 2800 | 12.00 |
| 12 | 2200 | 2710 | 252 | 352 | 1420 | 43.3 | 3660 | 12.00 |
| 15 | 2200 | 2830 | 252 | 352 | 1554 | 45.9 | 4540 | 12.00 |
| 18 | 2200 | 2830 | 252 | 352 | 1554 | 48.1 | 5320 | 12.00 |
| 20 | 2500 | 2830 | 252 | 352 | 1674 | 50.0 | 6000 | 12.00 |
| 10 | 6 | 9 | A5
2M | 5/0.8 | 2800 | 3430 | 790 | 400 | 320 | 90-300 | 252 | 352 | 1717 | 56.3 | 2510 | 12.00 |
| 9 | 2800 | 3430 | 252 | 352 | 1717 | 59.2 | 3250 | 12.00 |
| 12 | 2800 | 3460 | 252 | 352 | 1717 | 61.7 | 3970 | 12.00 |
| 15 | 2800 | 3460 | 252 | 352 | 1849 | 64.6 | 4920 | 12.00 |
| 18 | 2800 | 3460 | 252 | 352 | 2440 | 65.9 | 5270 | 12.00 |
Welcome to buy the newest and competitive price DAWSON DIN/FEM Standard Electric Under Running Crane For Lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Note: 1、This crane travelling standard speed for 5-25 m/min (frequency conversion control), the trolley standard speed is 5-20 m/min (frequency conversion control).
2、Control mode: button switch, remote control, button switch + remote control, cabin, optional.
3、Technical parameter table is for reference only ,specific and special requirements please contact us.
Hot Tags: under running crane, din/fem standard under running crane, electric under running crane, wire rope hoist china supplier, single girder hoist, wire rope hoist China factory, wire rope hoist China manufacturer, wire rope hoist China exporter, high quality wire rope hoist, low price wire rope hoist, wire rope hoist in stock, wire rope hoist OEM, wire rope hoist dawson brands Electric Wire Rope Hoist Crane Fittings:
A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.
A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.
Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.
Selection Criteria
The size of the hoist is determined by the load spectrum, average operating time, safe working load and rope revving.
1. What are the operating conditions ?
2. What is the specified safe working load ?
3. To what height must the load be lifted ?
4. What is the required lifting speed ?
5. Do the loads need to be lifted and lowered with great accuracy ?
6. Is horizontal load travel necessary ?
7. How the hoist to be controlled ?
| Duty Factor | Mean Effective Loads | Average operating time per day in hours |
| Light Duty | | K≤0.125
Hoist units which are usually subject to very small loads and in exceptional cases only to maximum loads | ≤2 | 2-1 | 4-8 | 8-16 |
| Medium Duty | | 0.125<k≤0.25
Hoist units which are usually subject to small loads but rather often to maximum loads | ≤1 | 1-2 | 2-4 | 4-8 |
| Heavy Duty | | 0.25<k≤0.5
Hoist units which are usually medium loads but frequently to maximum loads | ≤0.5 | 0.5-1 | 1-2 | 2-4 |
| Very Heavy Duty | | 0.5<k≤1
Hoist units which are usually subject to maximum or almost maximum loads | ≤0.25 | 0.25-0.5 | 0.5-1 | 1-2 |
| Working Group | ISO | M3 | M4 | M5 | M6 |
| FEM | 1Bm | 1Am | 2m | 3m |
The average operating time per working day is estimated or calculated as follows:
2 × average hook path(m) × number of cycles/hour × number of working time/day
Operating time/day= ------------------------------------------------------------------------------------------------------------
60 ×lifting speed(m/min)
