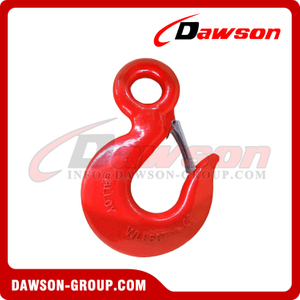

DS130 320A Grade 70 G70 WLL 0.75-30T Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 WLL 0.5-20T Forged Carbon Steel Eye Hoist Hook

Available in carbon steel and alloy steel.
Forged-Quenched and tempered.
Ultimate load is 5 times the Working Load Limit.
  • DAWSON/OEM

  • DS130

  • WLL 0.5-30T

Availability:
Quantity:

DS130 320A Grade 70 G70 WLL 0.75-30T Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 WLL 0.5-20T Forged Carbon Steel Eye Hoist Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory


DS130 G70 Forged Alloy Steel Eye Hoist Hook with Latch, G43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
DS130 320A G70 FORGED ALLOY STEEL EYE HOIST HOOK WITH LATCH, 320C GRADE 43 CARBON STEEL EYE HOIST HOOK - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY   DS130 320A G70 FORGED ALLOY STEEL EYE HOIST HOOK WITH LATCH, 320C GRADE 43 CARBON STEEL EYE HOIST HOOK - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER

ITEM NO. WEIGHT/kg ALLOY(320A) CARBON(320C) D±1 E±2 H±1.5 K±2.5 L±3 M±1.5
WLL/T B.L/T WLL/T B.L/T
DS130-A0.75T/C0.5T 0.21 0.75 3.75 0.5 2.5 16.5 18 17 72 97 16
DS130-A1T/C0.75T 0.27 1 5 0.75 3.75 19 22 20.5 82 112 16
DS130-A1.5T/C1T 0.4 1.5 7.5 1 5 23 24.5 21.5 94 126 17.5
DS130-A2T/C1.5T 0.6 2 10 1.5 7.5 28 25 26 104.5 142 21
DS130-A3T/C2T 0.84 3 15 2 10 31 27 28 120 163 23
DS130-A5T/C3T 1.81 5 25 3 15 39 35.5 40 146 203 33
DS130-A7T/C5T 3.35 7 35 5 25 51 44 45 187.5 255 38
DS130-A11T/C7.5T 6.1 11 55 7.5 37.5 62 55 57 231.5 317 46
DS130-A15T/C10T 9.6 15 75 10 50 73 57 66 262 360 55
DS130-A22T/C15T 16 22 110 15 75 89 83 79.6 318 433 68.5
DS130-A30T/C20T 25.8 30 150 20 100 90 95 91 360 495.5 70
Available in carbon steel and alloy steel.
Forged-Quenched and tempered.

Ultimate load is 5 times the Working Load Limit.

Widely used with Chain and Wire Rope through some connecting links,such as Hammer Lock Links, Repair Links, Clevis Links, Rope Thimbles, etc"

Product specifications:

WLL 0.75T G70 Eye Hoist Hook, WLL 1T G70 Eye Hoist Hook, WLL 1.5T G70 Eye Hoist Hook, WLL 2T G70 Eye Hoist Hook, WLL 3T G70 Eye Hoist Hook, WLL 5T G70 Eye Hoist Hook, WLL 7T G70 Eye Hoist Hook, WLL 11T G70 Eye Hoist Hook, WLL 15T G70 Eye Hoist Hook, WLL 22T G70 Eye Hoist Hook, WLL 30T G70 Eye Hoist Hook

WLL 0.75ton Grade 70 Alloy Eye Hook, WLL 1ton Grade 70 Swivel Hook, WLL 1.5ton Grade 70 Swivel Hook, WLL 2ton Grade 70 Swivel Hook, WLL 3ton Grade 70 Swivel Hook, WLL 5ton Grade 70 Swivel Hook, WLL 7ton Grade 70 Swivel Hook, WLL 11ton Grade 70 Swivel Hook, WLL 15ton Grade 70 Swivel Hook, WLL 22ton Grade 70 Swivel Hook, WLL 30ton Grade 70 Swivel Hook

WLL 750kg 320A Hook With Latch, WLL 1000kg 320A Hook With Latch, WLL 1500kg 320A Hook With Latch, WLL 2000kg 320A Hook With Latch, WLL 3000kg 320 Hook With Latch, WLL 5000kg 320A Hook With Latch, WLL 7000kg 320A Hook With Latch, WLL 11000kg 320 Hook With Latch, WLL 15000kg 320A Hook With Latch, WLL 22000kg 320A Hook With Latch, WLL 30000kg 320A Hook With Latch


WLL 0.5T G43 Alloy Carbon Hook, WLL 0.75T G43 Alloy Carbon Hook, WLL 1T G43 Alloy Carbon Hook, WLL 1.5T G43 Alloy Carbon Hook, WLL 2T G43 Alloy Carbon Hook, WLL 3T G43 Alloy Carbon Hook, WLL 5T G43 Alloy Carbon Hook, WLL 7.5T G43 Alloy Carbon Hook, WLL 10T G43 Alloy Carbon Hook, WLL 15T G43 Alloy Carbon Hook, WLL 20T G43 Alloy Carbon Hook

WLL 0.5ton Grade 43 Swivel Hoist Hook, WLL 0.75ton Grade 43 Swivel Hoist Hook, WLL 1ton Grade 43 Swivel Hoist Hook, WLL 1.5ton Grade 43 Swivel Hoist Hook, WLL 2ton Grade 43 Swivel Hoist Hook, WLL 3ton Grade 43 Swivel Hoist Hook, WLL 5ton Grade 43 Swivel Hoist Hook, WLL 7.5ton Grade 43 Swivel Hoist Hook, WLL 10ton Grade 43 Swivel Hoist Hook, WLL 15ton Grade 43 Swivel Hoist Hook, WLL 20ton Grade 43 Swivel Hoist Hook

WLL 500kg 320C Hook With Latch, WLL 750kg 320C Hook With Latch, WLL 1000kg 320C Hook With Latch, WLL 1500kg 320C Hook With Latch, WLL 2000kg 320C Hook With Latch, WLL 3000kg 320C Hook With Latch, WLL 5000kg 320C Hook With Latch, WLL 7500kg 320C Hook With Latch, WLL 10000kg 320C Hook With Latch, WLL 15000kg 322C Hook With Latch, WLL 20000kg 320C Hook With Latch


Welcome to buy the newest and competitive price DAWSON DS130 320A Grade 70 G70 Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 Forged Carbon Steel Eye Hoist Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Prodcuts Show:

Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
Forged Alloy Steel Eye Hoist Hook with Latch, Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Carbon Steel Eye Hoist Hook, Forged Alloy Steel Eye Hoist Hook with Latch - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Forged Alloy Steel Eye Hoist Hook with Latch, Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
DS130 G70 Forged Alloy Steel Eye Hoist Hook with Latch, G43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
DS130 G70 Forged Alloy Steel Eye Hoist Hook with Latch, G43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Factory, Manufacturer

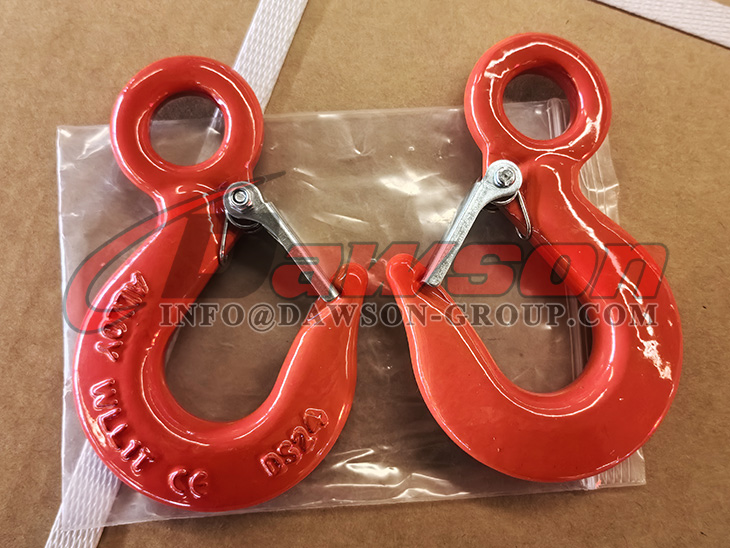

DS130 320A G70 Forged Alloy Steel Eye Hoist Hook with Latch - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
DS130 320A G70 Forged Alloy Steel Eye Hoist Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS130 320A G70 Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS130 320A Grade 70 G70 Forged Alloy Steel Eye Hoist Hook with Latch, 320C G43 Grade 43 Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China
DS130 320A G70 Forged Alloy Steel Eye Hoist Hook with Latch, Forged Carbon Steel Eye Hoist Hook - Dawson Group Ltd. - China Manufacturer, Supplier
DS130 320A G70 Forged Alloy Steel Eye Hoist Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS130 G70 Forged Alloy Steel Eye Hoist Hook with Latch - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS130 G43 Grade 43 Forged Alloy Steel Eye Hoist Hook - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Forged Steel Eye Hoist Hook - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
G43 Grade 43 Forged Alloy Steel Eye Hoist Hook - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

Other related products:

DAWSON Rigging Hardware - Dawson Group Ltd. - China Manufacturer, Supplier



Other Related Eye Hooks:
Supply only on special request.Not for recommendation.
For further information, please  contact us. Email: info@dawson-group.com

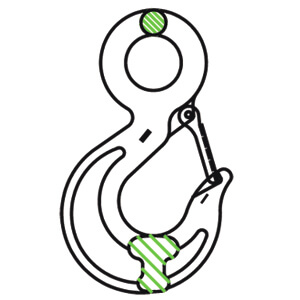

DS097 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS097

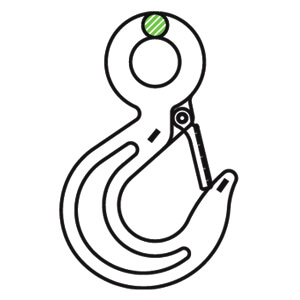

DS223 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS223

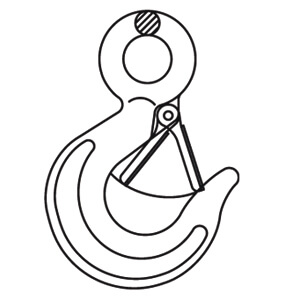

DS291 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS291

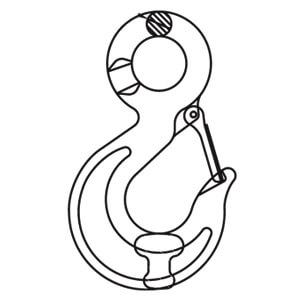

DS366 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS366

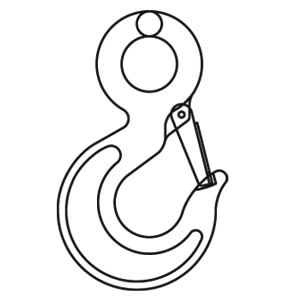

DS504 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS504

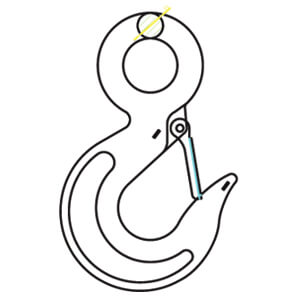

DS505 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS505

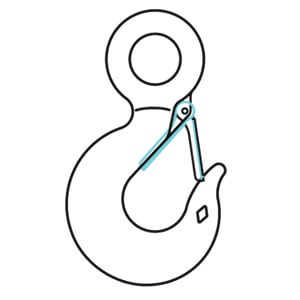

DS629 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS629

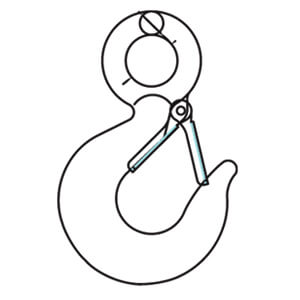

DS225 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS225

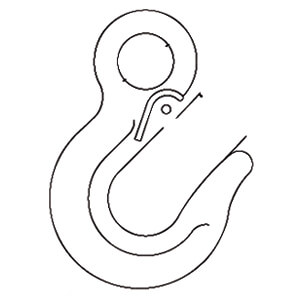

DS380 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS380

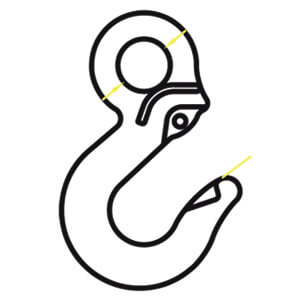

DS218 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory

DS218

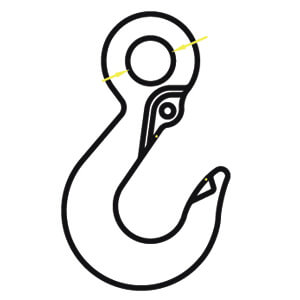

DS219 Eye Sling Hook with Latch - Dawson Group LTD. - China Manufacturer, Supplier, Factory
